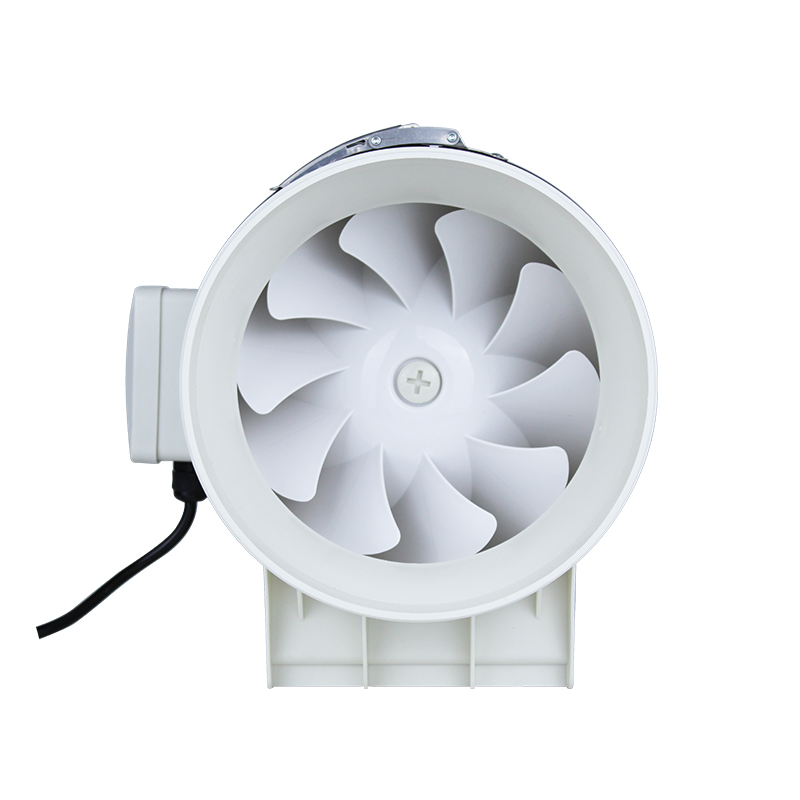

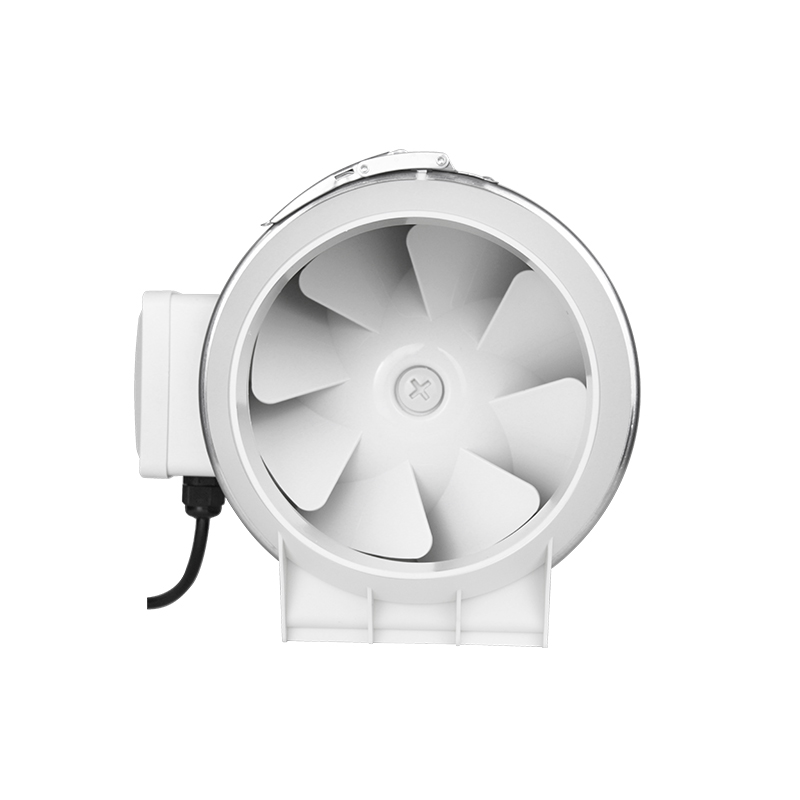

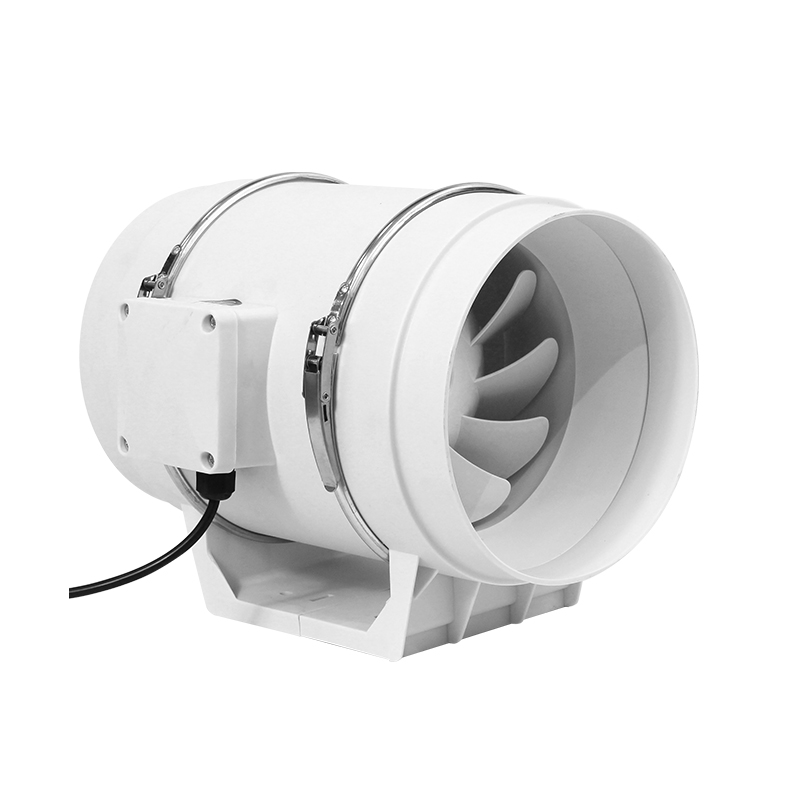

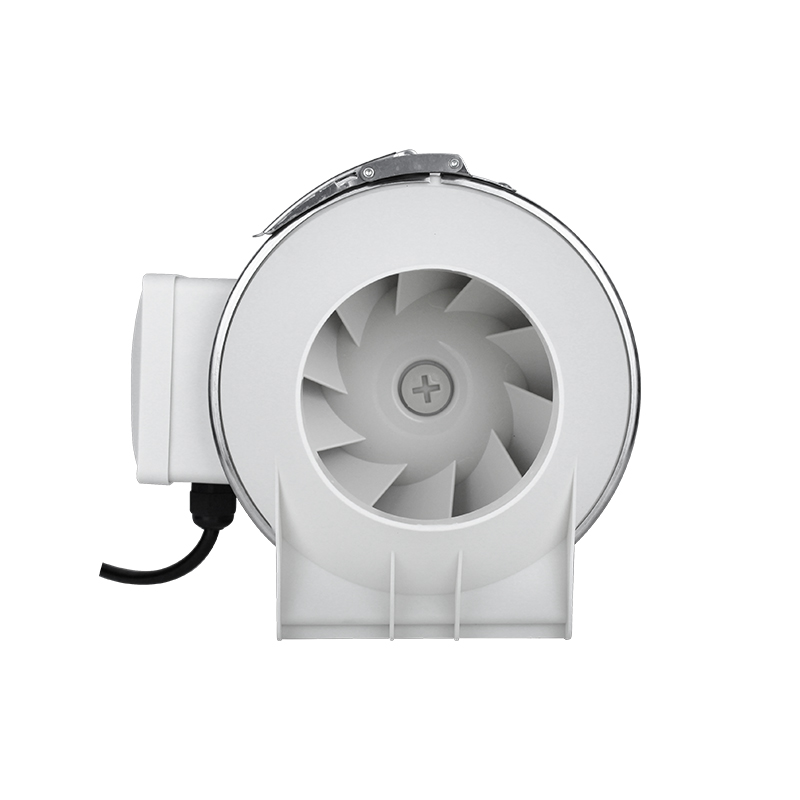

Diagonal Flow Booster Powerful Duct Fan Industrial Exhaust Fan

The diagonal flow booster powerful duct fan is also called a mixed flow fan, which is a fan between the axial flow fan and the centrifugal fan. The impeller is unique, which makes the air move centrifugally and axially in the shell at the same time. The wind pressure coefficient is higher than that of the axial flow fan, and the flow coefficient is greater than that of the centrifugal fan. It has the advantages of high efficiency, low noise, large air volume, simple structure and easy installation. The material is strong and durable, the motor has good performance and runs smoothly. It is widely used in the supply and exhaust air systems of industrial and mining enterprises, hotels, restaurants and other places.

Contact Us
View Vodeo
PREV：Energy-Saving Silent Duct Fan Inline Duct FanNEXT：No next article

Diagonal Flow Booster – High-Power Industrial Duct Fan | Efficient Exhaust Solution

Boost ventilation efficiency with our Diagonal Flow Booster Industrial Exhaust Fan—engineered for high-pressure airflow, durability, and energy savings. Ideal for factories, warehouses, and commercial spaces requiring powerful, low-noise exhaust performance.

Diagonal Booster Duct Fan Specifications
Product Type Diagonal Booster Duct Fan
Applicable Scenarios Industrial ventilation, home air conditioning, greenhouse ventilation, kitchen ventilation
Power Supply Voltage 220-240V / 1Ph / 50Hz (customizable)
Air Flow 200 m³/h (4-inch model)
Total Pressure 200 Pa (adjustable)
Motor Type High-efficiency brushless DC motor (PWM control)
Noise Level ≤45 dB (A-weighted)
Material High-strength aluminum alloy blades, anti-corrosion coating shell
Size 4 inches (100mm diameter)

High-Pressure Airflow Technology
Diagonal blade design delivers 30% higher static pressure than standard axial fans, ensuring optimal airflow in long ducts or confined spaces.

Industrial-Grade Durability
Heavy-duty galvanized steel housing and corrosion-resistant motor withstand harsh environments (IP55 rating).

Ultra-Quiet Operation
Precision-balanced impeller reduces noise to <65 dB, perfect for noise-sensitive areas.

Energy-Saving Motor
EC/BLDC motor options cut energy consumption by up to 40% vs. traditional AC fans.

Easy Installation & Maintenance
Compact design fits standard duct sizes (100mm–800mm), with removable panels for quick cleaning.

Application Scenario
Industrial Ventilation – Factories, workshops, welding booths.
Commercial HVAC – Restaurants, parking garages, server rooms.
Agricultural – Greenhouse air circulation, livestock barns.

Diagonal Flow Booster Technical Specifications
Product Type Diagonal Booster Duct Fan
Applicable Scenarios Industrial ventilation, residential air conditioning, greenhouse ventilation, kitchen exhaust
Power Supply Voltage 220-240V / Single Phase / 50Hz (Customizable)
Air Flow 200 m³/h (4-inch model)
Total Pressure 200 Pa (Adjustable)
Motor Type High-efficiency Brushless DC Motor (PWM Control)
Noise Level ≤45 dB (A-weighted)
Material High-strength aluminum alloy blades, anti-corrosion coated housing
Size 4 inches (100mm diameter)

Q: Can this fan handle smoke or high temperatures?
A: Yes! Standard models withstand up to 70°C; high-temp versions (150°C) available.

Q: Is duct mounting flexible?
A: Fits both inline and wall-mounted setups—includes brackets for vertical/horizontal installation.
